Singulair Tank 600 GPD
The Singulair Green aerobic treatment system incorporates Norweco's advanced aerobic treatment process, proven in hundreds of thousands of installations for decades, into a durable, watertight polyethylene tank.
Drip Package
The drip package includes drip tube, air relief valves (2), 30’ float cords (3), head works, HB105 pump, and a Wasp panel. Drip tube provided will be enough for the job that is being ordered for.
HKBFR
While the Hydro-Kinetic Bio-Film Reactor is utilized as an intergral component of our Hydro-Kinetic system, it is designed to work in a wide variety of applications and is easily installed as a component of any onsite wastewater treatment system.

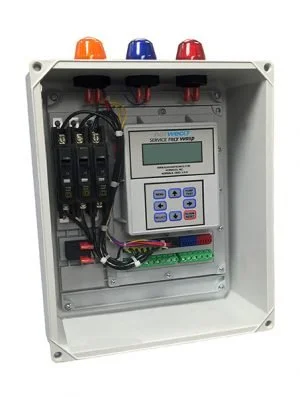

Wasp Panel
The Service Pro WASP (Weatherproof Advanced Surge Protection) control center delivers a complete management solution for your Singulair wastewater treatment system and components.

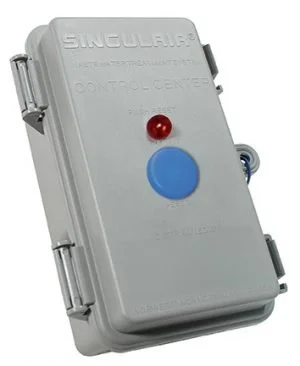

Singulair Panel
The Service Pro control center combines integrated circuitry, advanced telemetry and web-based data acquisition for the remote management of any wastewater treatment system.

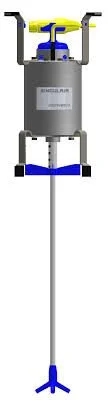

Norweco Aerator
The Norweco Aerator provides aeration to the effluent waste in the second compartment of the septic tank.
Air Relief Valves (2)
This type of valve is often referred to as a kinetic air valve, large orifice air valve, a vacuum breaker, and even an air relief valve. These will discharge large volumes of air while the pipelines are filling or pressurizing, as well as admitting air back into the system when lines are draining or de-pressurizing.
30’ Float Cords (3)
There are three float cords provided for a Drip System Design. 1st float is the on/off float, 2nd float is the High Water Alarm float, 3rd float is the Timer Override float.

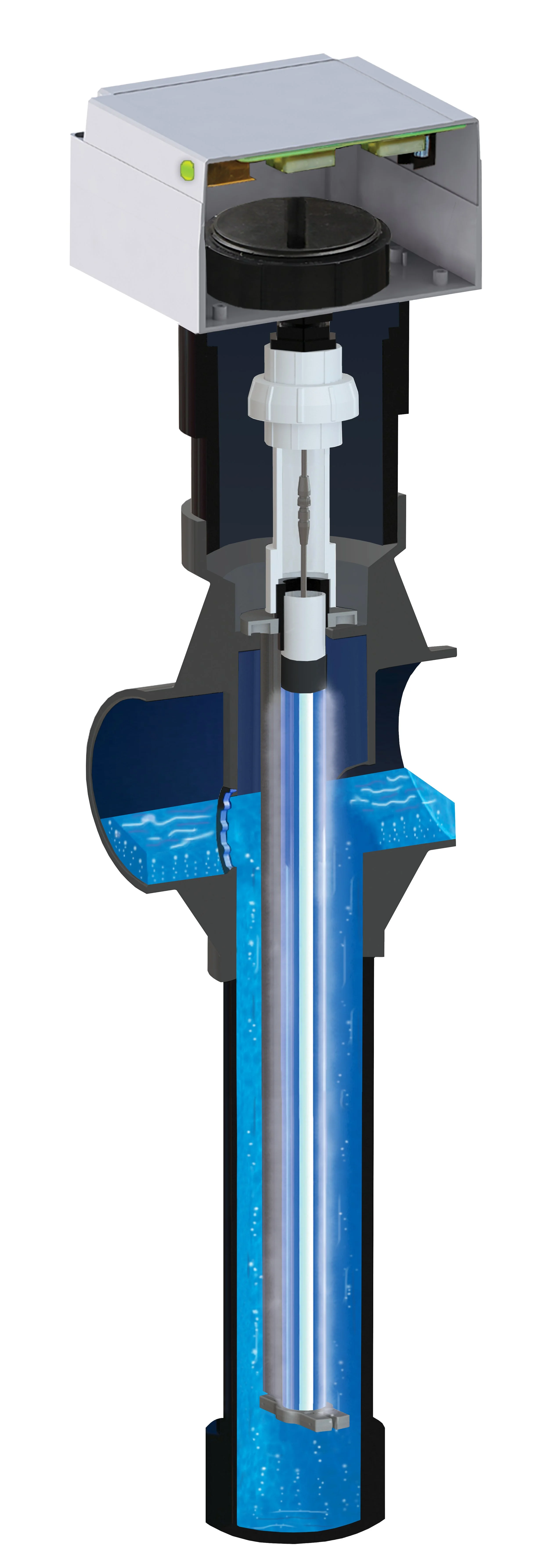

AT 1500 (UV Light)
The Model AT 1500 Ultraviolet (UV) disinfection system provides safe, effective and reliable treatment where ultraviolet is the preferred method of disinfection.
HB105 Effluent Pump
The pump shall be a Norweco Model HB105 high head submersible pump, designed to handle filtered effluent and be capable of passing 1/16" spherical solids. The 115 volt, single phase, 60 cycle pump shall be UL and CSA listed and capable of running dry for short durations without damage to the motor or pump end.
Tuf-Tite 6” Riser
Tuf-Tite 24” riser x 6” H. (8) Stainless steel screws provide with each riser.
Tuf-Tite Adapter Ring
Tuf Tite 24” Adapter Ring. Fits onto most septic tanks concrete and plastic tanks.
